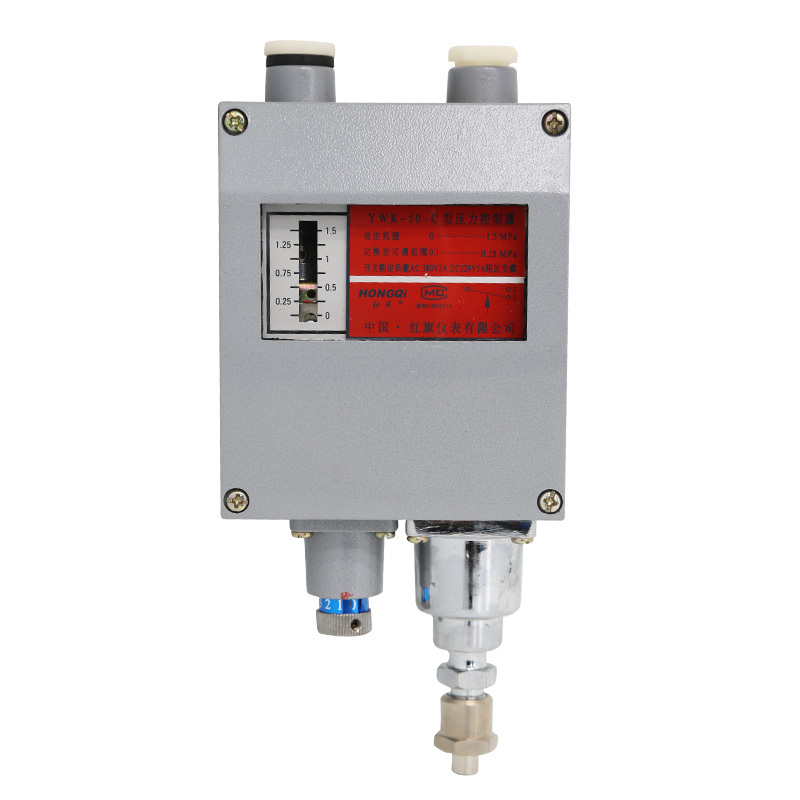

YWK-50-C Type Marine Pressure Controller

Description

YWK-50-C Type Marine Pressure Controller
YWK-50-C Type Pressure Controller is an electric switch that can make the circuit close or open following the change of pressure. It can be used to control pressure gas,steam or liquid by two position type to support performance structure in ship and freeze equipment or other industrial equipment.

Main Technical Specification:

Control range	Adjustment range of differential gap		Error of set value (Mpa)	Error of repeatability (Mpa)	Remark
Control range	min switching differential	max switching differential	Error of set value (Mpa)	Error of repeatability (Mpa)	Remark
-0.1~0	≤0.006	≥0.028	±0.004	±0.003	The controlled meidum is not corrosive to brass, stainless steel and Sn-cu solder
0~0.1	≤0.006	≥0.028	±0.004	±0.003
0~0.2	≤0.01	≥0.08	±0.008	±0.006
0~0.3	≤0.025	≥0.1	±0.012	±0.008	The controlled meidum is not corrosive to brass, lead,bronze, stainless steel and Sn-cu solder
0~0.5	≤0.03	≥0.1	±0.02	±0.008
0~0.8	≤0.07	≥0.25	±0.032	±0.015
0~1.0	≤0.07	≥0.25	±0.04	±0.02
0~1.5	≤0.1	≥0.28	±0.06	±0.025	The controlled meidum is not corrosive to brass, lead, stainless steel and Sn-cu solder
0~2.0	≤0.12	≥0.3	±0.08	±0.035
0~3.0	≤0.15	≥0.5	±0.12	±0.05
0~4.0	≤0.25	≥0.6	±0.16	±0.07
Contact capacity:AC380V 3A DC220V 2.5A
Protection:IP44
