Description

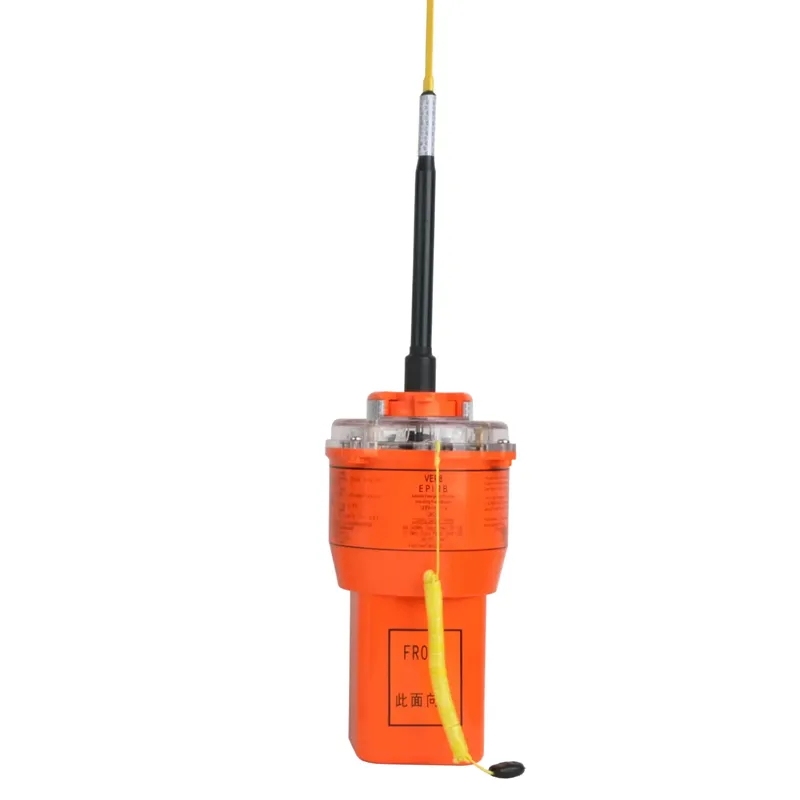

VEP8A AIS EPIRB

When the vessel in distress and be going to sink, the VEP8A beacon can be release automatically from the device and launches 406MHz emergency distress signal, after the signal received by COSPAS-SARSAT satellite system,it will be transmitted to the shore-based terminal. LUT(local user terminal) can decode and analyze to show the location of the beacon, and give the information to RCC(rescue control centre) to provide emergency rescue operations.

VEP8A EPIRB is designed in accordance with the latest international standards.VEP8A' s integral 50 channels GPS receiver gives a typical positional accuracy of 30m, significantly reducing the normal search distance from Tokm distance.Added AlS locating transmitter to providetimely signals for self-rescue of own or adjacent ships.

Specification of the EPIRB

Specification	1.GENERAL:
	Operating temperature: -20 to +55 ℃
	Battery: Lithium, 5 years warranty
	Operating time: >200 hours at -20℃ and >400 hours at +20℃
	Strobe light: 24 flashes per minute (>1cd)
	Dimensions: Φ140/231. 5mm (excluding include antenna)
	Storage temperature: -40 to +65 ℃
	Weight: <1.7kg
	2.406 MHz SATELITE SIGNAL TRANSMITTER
	Output frequency: 406.040MHz ±1kHz
	Output power: 5W (37dBm) ±2dB
	Phase modulation: 1.1rad ± 0.1rad
	Data encoding: Biphase L
	3.121.5MHz HOMING SIGNAL TRANSMITTER
	Output frequency: 121.5MHz ±3kHz
	Output power: >50mW (+17dBm)
	Modulation: A3X
	Transmitter duty cycle: 97%
	4.GLOBAL POSITIONING SYSTEM
	Receiver type: 50 Channels, GPS L1 frequency, C/A Code
	Sensitivity: -160dBm (Tracking & Navigation)
	Position accuracy: <100m (Horizontal, Autonomous)
	Cold start: 32s (Autonomous)
